SpiroCare - Pulmonary Function Testing Touch Screen Spirometer

SpiroCare - Pulmonary Function Testing Touch Screen Spirometer - Image 2

SpiroCare - Pulmonary Function Testing Touch Screen Spirometer - Image 3

SpiroCare - Pulmonary Function Testing Touch Screen Spirometer - Image 4

SpiroCare - Pulmonary Function Testing Touch Screen Spirometer -Atlona shop SpiroCare Bionet Pulmonary Function Testing Spirometer left

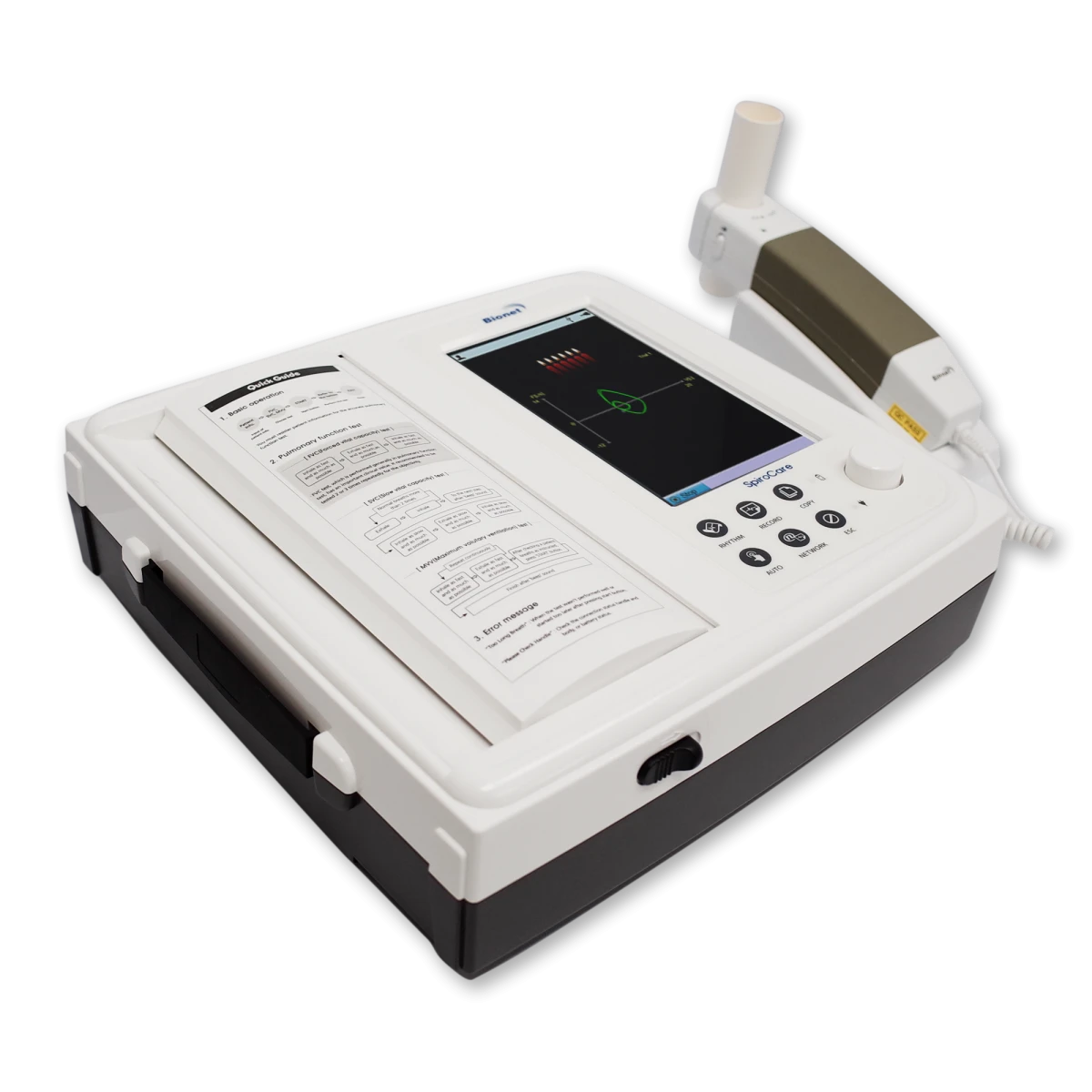

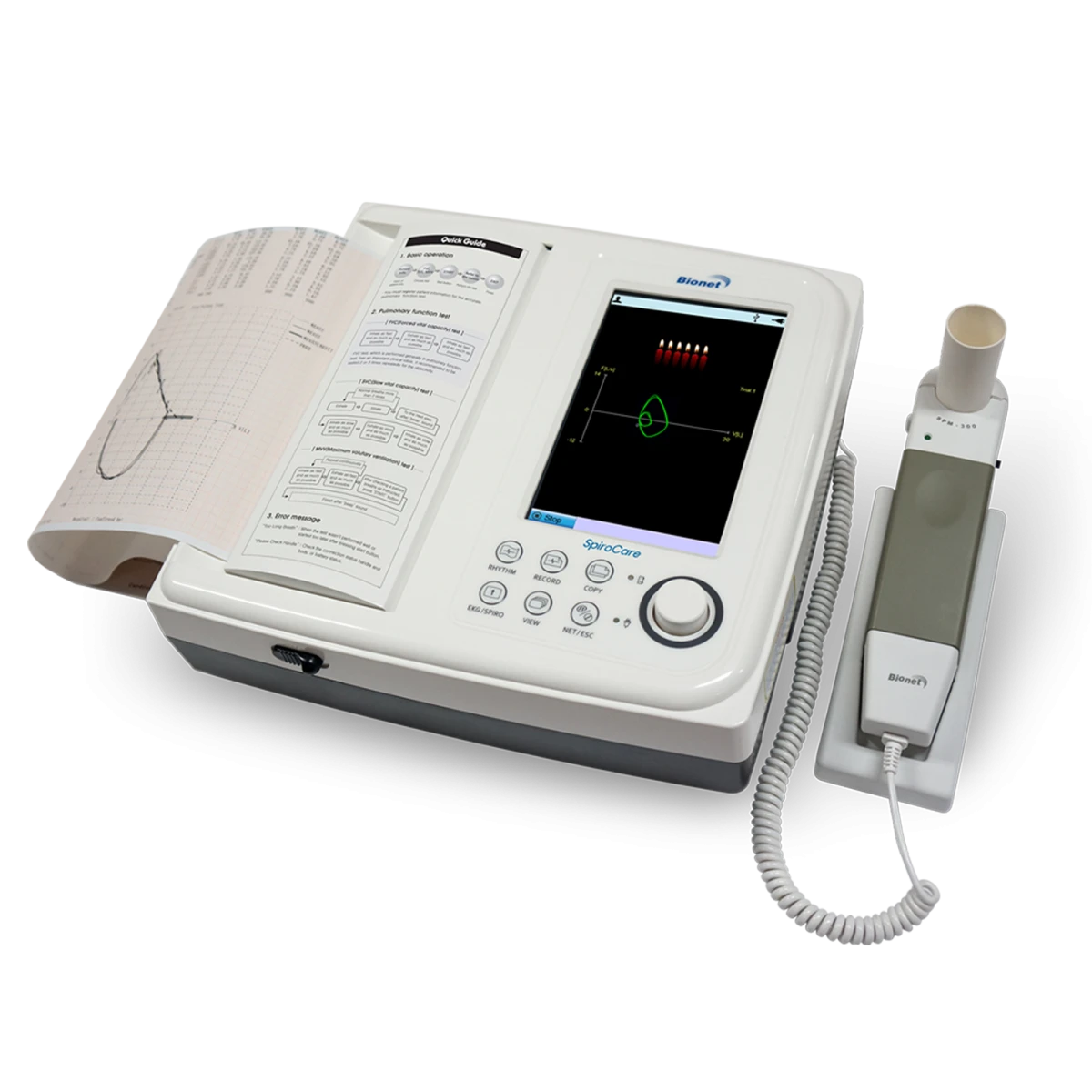

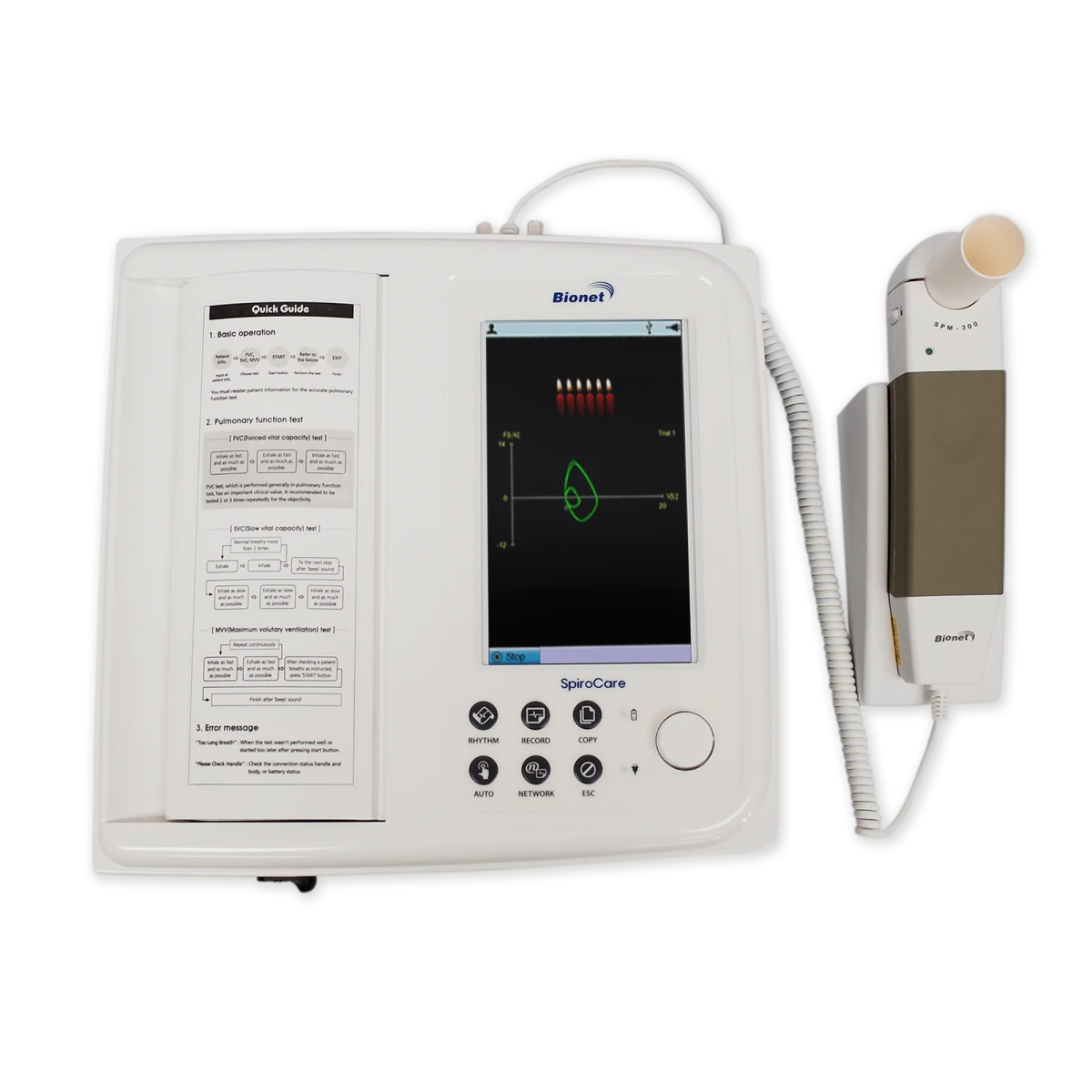

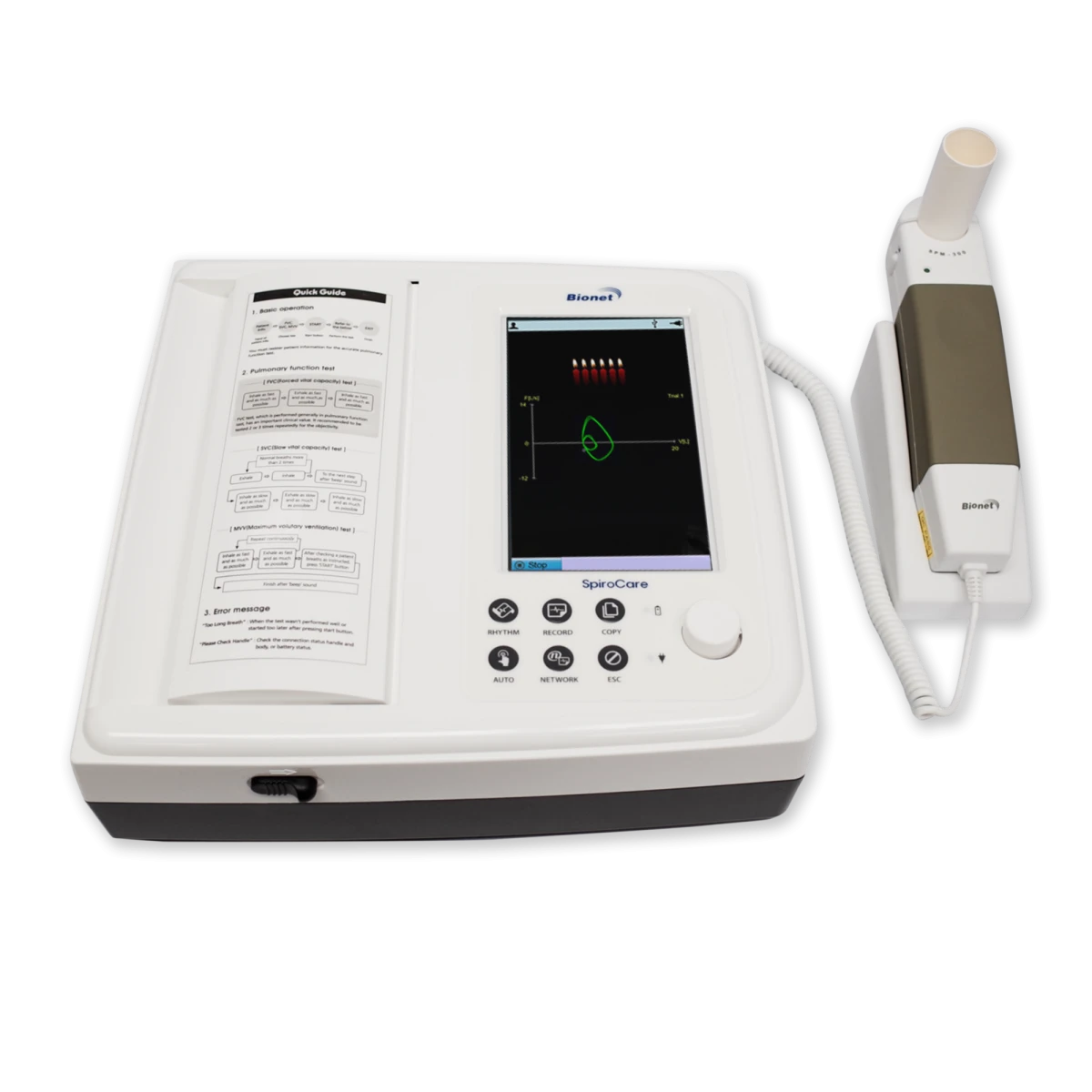

SpiroCare – Pulmonary Function Testing Touch Screen Spirometer

Original price was: $359.00.Current price is: $95.99.

SKU: YMLVB 2899785 Categories: Medical, Spirometer Tags: Brand_Bionet, Spirometer

Quality Products, Quality Service
Online assistance, always just a message away.
Prompt service, every time.
Shop quality, shop with us.

Description
Reviews (0)

It is highly recommended that you also purchase the SPM-CS 3L calibration syringe, in order to ensure accurate calibration of your spirometer.

The SpiroCare unit is an accurate and hygienic spirometer. It features 7” color touch screen, provides FVC/SVC/MVV/post-bronchodilator tests, candle blowing-out animation to encourage patient success, accurate measurement from disposable mouthpiece with patented-sensor method, prints PFT test report with interpretation, and a 4-year warranty.

For data management, it saves up to 200 tests internally and exports saved data to USB flash drive, in JPEG/PDF/DCM file formats.

Performance

FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Maximum) test.
Pre- and post-bronchodilator comparison.
Accurate measurement by using disposable mouthpiece with built-in sensor.
PFT test report with interpretation.

User-Friendliness

7” color screen for displaying measurement in real time.
Touch interface for easily entering patient information.
Built-in printer and rechargeable battery.
USB barcode reader and keyboard can be attached through USB ports.
Disposable mouthpiece with patented sensing method is hygienic and eliminates the hassle of cleaning.

Data Management

Saves up to 200 tests internally.
Exports the saved data to USB flash drive as JPEG/PDF/DCM file format.

Special Advantage

3-year warranty

Includes:
SpiroCare Main Unit with Spirometer Handle, 1 Medi-Graph Paper Roll, 20 Disposable Mouthpieces, 1 Nose Clip, 1 Mouthpiece Adapter, Hospital Grade Power Cord, Operation Manual, Diagnostics Guide Book and 3-Year Warranty Card. WiFi USB Dongle and USB Flash Drive with BMS-Plus Software Included.

Option:
Cart

Warranty:

3-Year Warranty

Calibration
It is recommended to calibrate a spirometer with Bionet 3L calibration syringe periodically.

Our calibration recommendations are based upon guidelines from the American Thoracic Society (ATS) and the European Respiratory Society (ERS)

The volume accuracy of the spirometer must be checked at least daily with a single discharge of a 3-L calibrated syringe.
At least quarterly, volume spirometers must have their calibration checked over their entire volume range using a calibrated syringe or an equivalent volume standard. The measured volume should be within 3.5% of the reading or 65 mL, whichever is greater. This limit includes the 0.5% accuracy limit for a 3-L syringe.

Specification:

FEATURE	SPECIFICATION
Dimension	296 (W) x 305.5 (H) x 34 (D) mm, approx. 250 kg
Measuring Values	– FVC: FVC, FEV 1.0, FEV 1/FVC, FEF 0.2-1.2l, fef 25-75%, FEF 75-85%, PEF, FEF 25%, FEF 50%, FEF 75%, FIVC, FEV6, PEFT, FET100%, Extrapolated Volume – SVC: SVC, ERV, IRV, TV, EC – MVV: MVV, FB, TV
Presentation	Flow volume loop MVV: MVV, FB, TV Measurement values table
Measuring Range	Flow: 0 to ± 14 L/s Volume: 0 to ± 12 L
Measuring Method	Differential pressure method
Prediction equation	Morris-Polgar, ECCS-Quanjer, Knudson-ITS, Pereira, Korea CJK
Sample rate	200 samples/sec
Flow impedance	< 0.2 mbar s/l at 12 l/s
Measuring accuracy	Complies with ATS (American Thoracic Society)
Environment	Ambient temperature: 15 to 40°C (59 to 104°F) Relative humidity: 10 to 90% (non-condensing) Atmospheric pressure: 700 to 1060 hPa
Standard accessory	Disposable mouthpiece 20 ea. Nose clip 1 ea. Adapter 1 ea. Handle dock 1 ea. Operation manual 1 ea. Diagnosis guide 1 ea. Power cord 1 ea.
