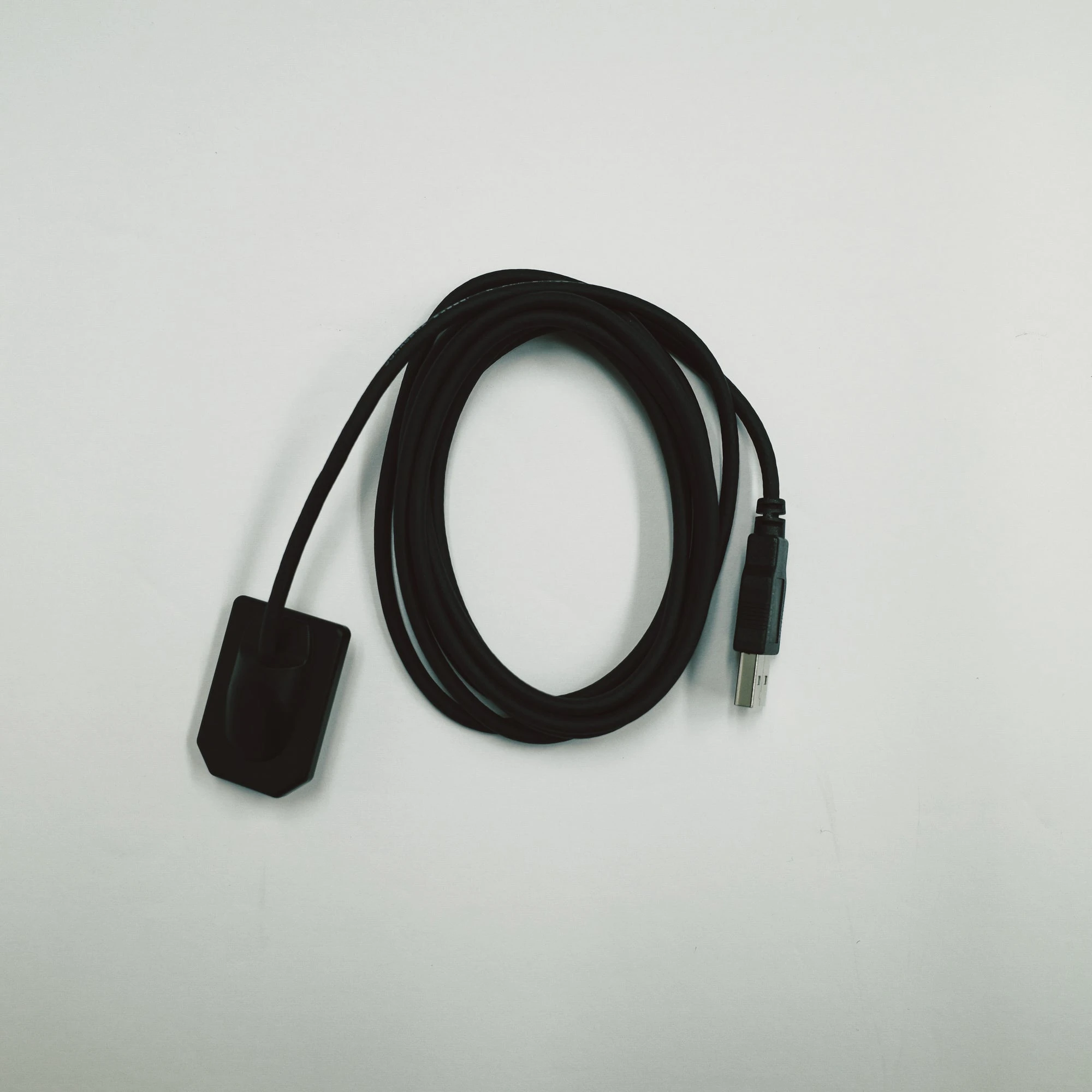

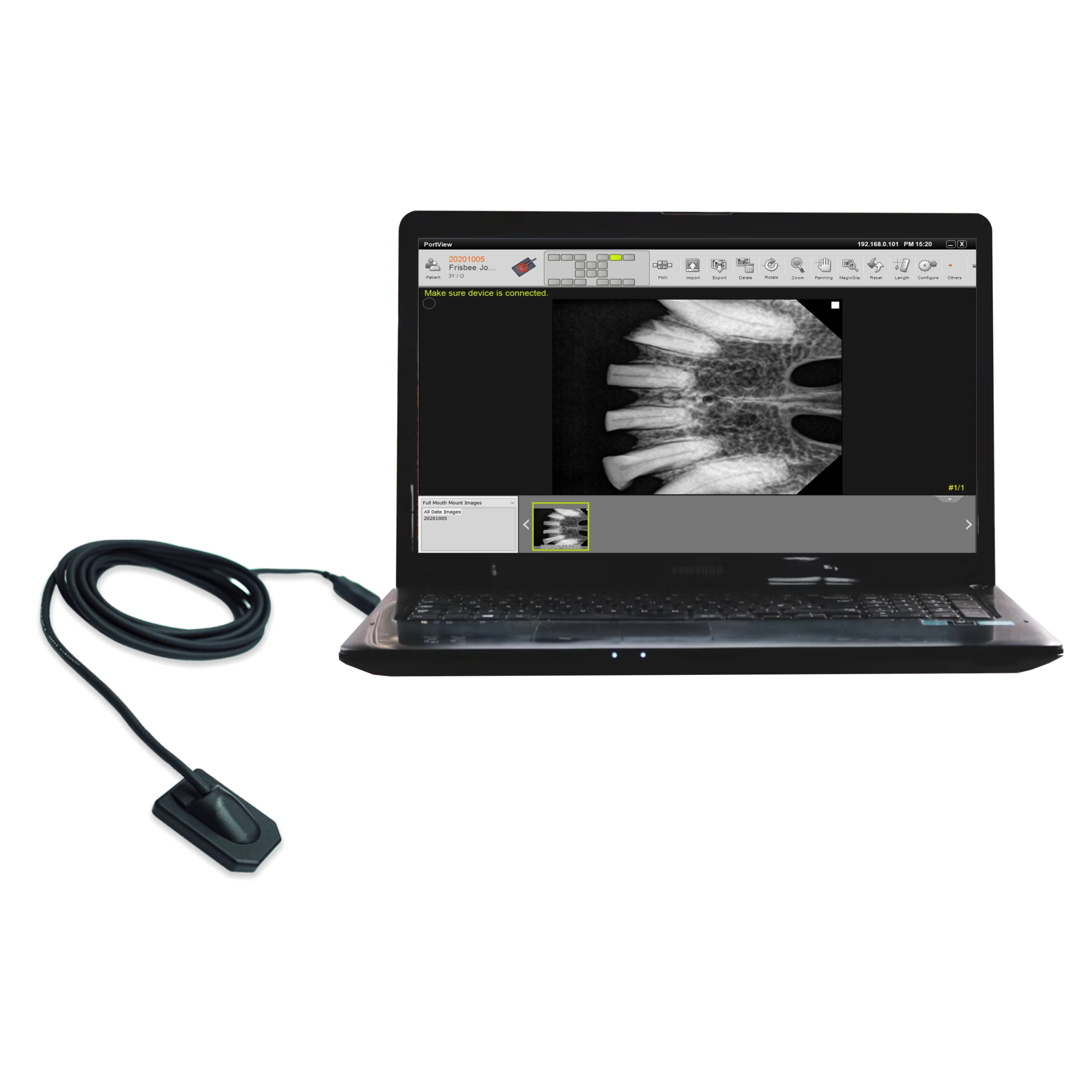

The PortView is a CMOS area image sensor developed for X-ray imaging. These image sensors have 2.2 megapixels (1,300 x 1,700), with a pixel size of 20×20 µm, and a monitoring photodiode for monitoring and detecting X-ray irradiation. The FOP (fiber optic plate) used as the input window ensures high image quality and long sensor life even under exposure to X-rays. The PortView supports USB 2.0 and is designed to be dust and waterproof, equivalent to IP67. Two sizes are available, with different scintillators used.
Pixel Size
- 20×20 µm
High Resolution
- 20 Lp/mm typ
Dynamic Range
- 57 dB (Portview_1D) / 75 dB (Portview_2D)
Monitoring Photodiode
- The monitoring photodiode is arranged along the entire circumference of the effective pixel area and this will monitor dose rates. When you get an image, if the output of the monitoring photodiode gets higher than a certain threshold, you can get an image automatically via USB 2.0 Interface.
Direct Connection with ZEN-PX4
Waterproof
- Equivalent to IP67
Warranty
2-Year Warranty
Â
Bite Protection Program
- Covers 1 traumatic bite and any other non-manufacturer defect which may occur during the sensor warranty period of 2 years.
- Damaged sensor to be returned to Bionet upon the replacement of a new sensor
- After replacement, the remainder of the original 2 year warranty will be applied to the new sensor.
- Must be purchased within 15 days from the date of sale.
Â
Specification
| Item | Specification |
|---|---|
| Image Size (HxV) | Portview_1D: 20 x 30mm |
| Portview_2D: 26 x 34mm | |
| Number of Total Pixels (HxV) | Portview_1D: 1,000 x 1,506 pixels |
| Portview_2D: 1,300 x 1,706 pixels | |
| Number of Effective Pixels (HxV) | Portview_1D: 1,000 x 1,500 pixels |
| Portview_2D: 1,300 x 1,700 pixels | |
| Number of Light-shielded Pixels |
Portview_1D: – Upper part: 766,768,770 pixels – Lower part: 1,000 x 3 pixels |
|
Portview_2D: – Upper part: 756,758,760 pixels – Lower part: 1,300 x 3 pixels |
|
| Pixel Size | 20×20 µm |
| Pixel Pitch (HxV) | 20 µm |
| Scintillator Type | CsI (Tl) |
| Interface | USB 2.0 |
* Specifications can be changed without prior notification.
