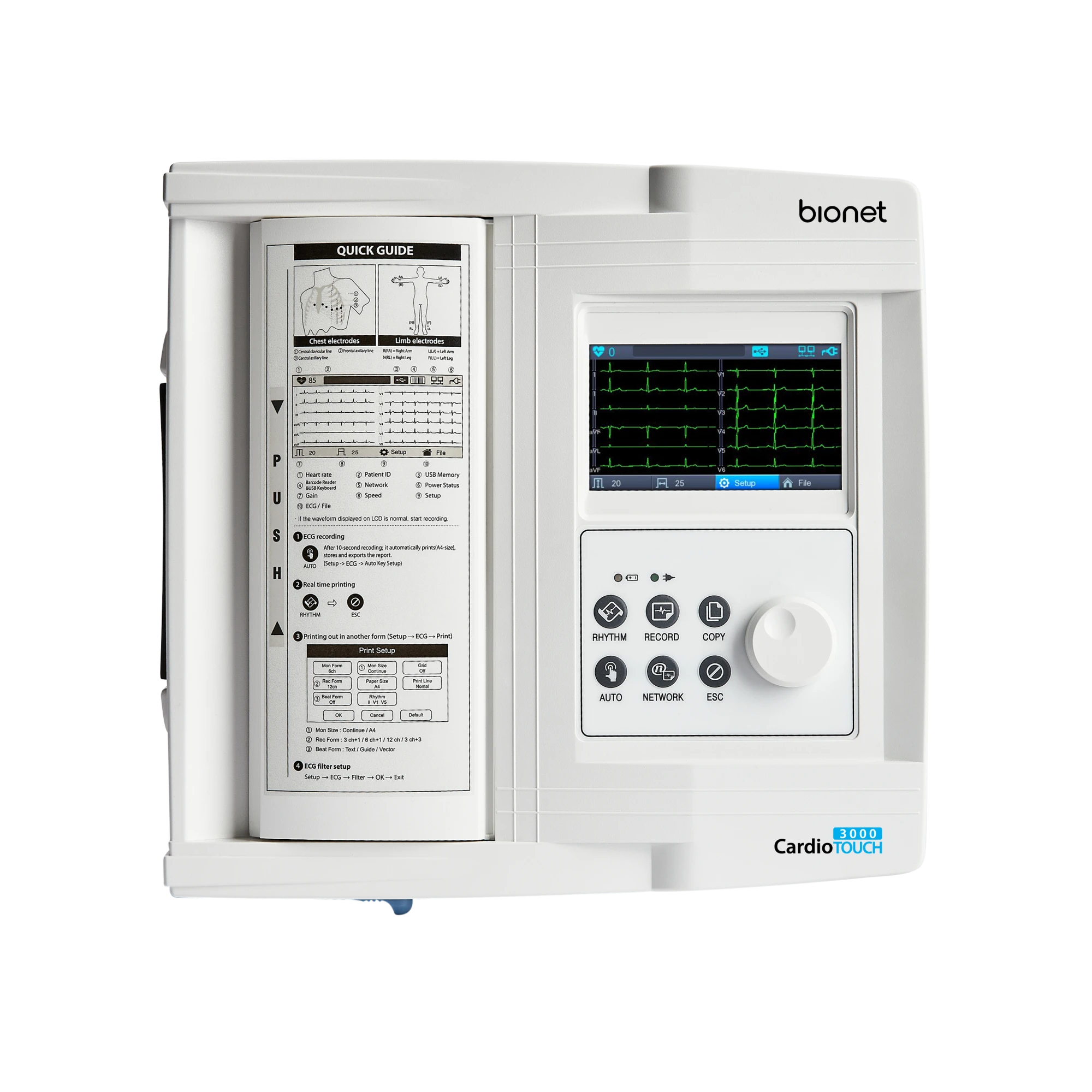

CardioTouch 3000 - Premium Quality Interpretive 12 Channel Electrocardiograph ECG/EKG Machine

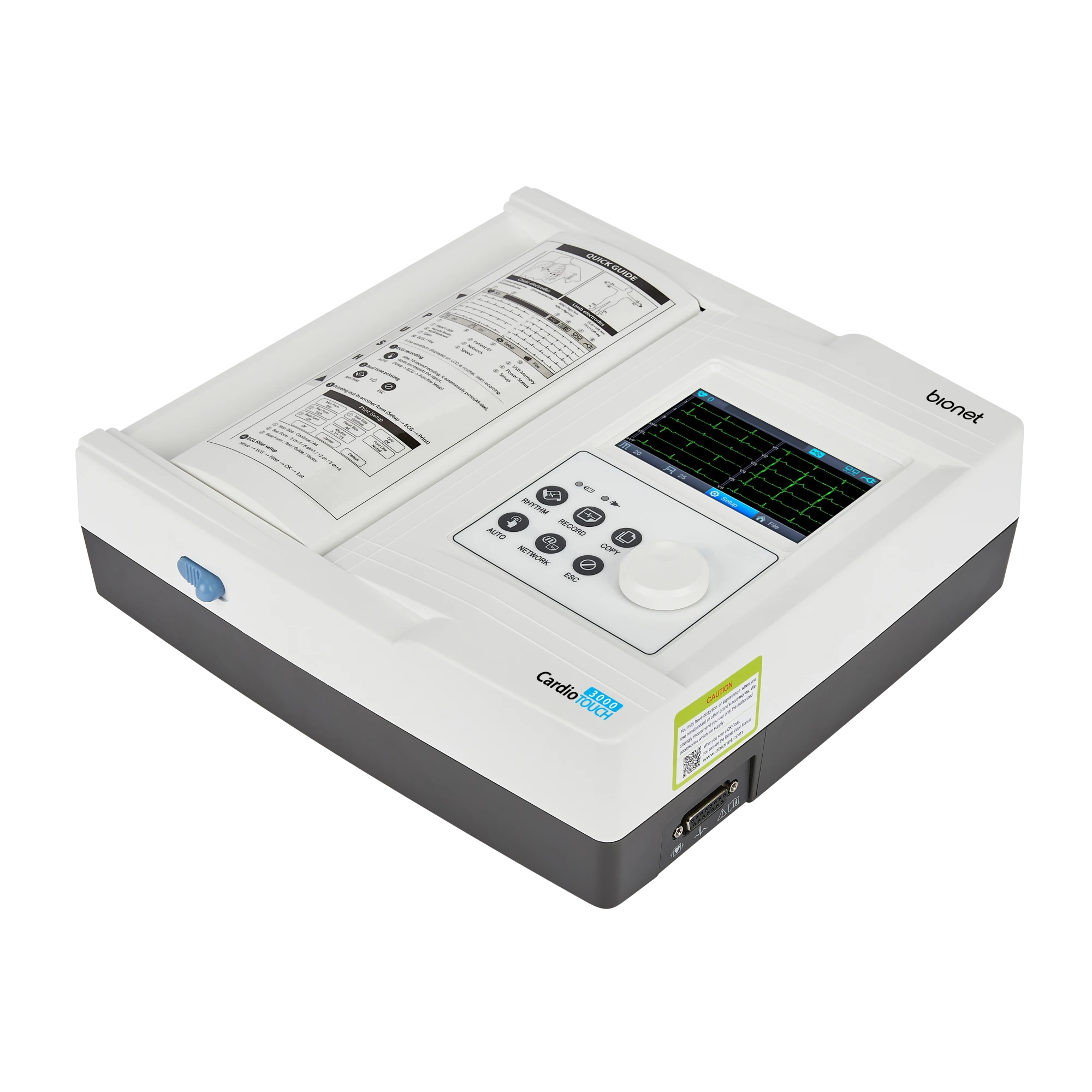

CardioTouch 3000 - Premium Quality Interpretive 12 Channel Electrocardiograph ECG/EKG Machine - Image 2

CardioTouch 3000 - Premium Quality Interpretive 12 Channel Electrocardiograph ECG/EKG Machine - Image 3

CardioTouch 3000 – Premium Quality Interpretive 12 Channel Electrocardiograph ECG/EKG Machine

Original price was: $392.00.Current price is: $96.99.

SKU: YMLVB 8766866 Categories: ECG, Medical Tags: Brand_Bionet, ECG

Quality Products, Quality Service
Online assistance, always just a message away.
Prompt service, every time.
Shop quality, shop with us.

Description
Reviews (0)

The CardioTouch 3000 is a premium quality interpretive 12 channel electrocardiogram (ECG / EKG) machine that does not compromise on performance. Suitable for use in private practice, the ER, or hospitals. The CardioTouch 3000 is designed for maximum ease of use and convenience.

Simultaneous 12 Channel Electrocardiograph (ECG/EKG) with a Touch of Succinct Report Simple, Intuitive yet Accurate

Easy of use interface with 4.3” LCD TFT Touch screen with rotary knob button
One button “AUTO” operation from acquisition to data storage, print-out & data transfer in 3 sec
Convenient A4 print-out for 12CH ECG with a single page report
8,000 sampling rate per second

User-Friendly Interface & Diagnosis

Quick guide indication at printer cover for easy operation recognition
Rotary knob push button for controlling all menus
Thermal A4 paper compatible with grid printing mode
120 types of interpretation algorithm integrated
Rechargeable Li-ion battery for 3 hr operation / 200 pages printout

Network & Data management

Wired, wireless connectivity with easy DHCP interface
BMS-Plus connection to PC thru LAN for data transfer to HIS (PACS/EMR) with various file format conversion JPEG, BMP, XML, PDF

ECG Filing System BMS-Plus

BMS-Plus is a software program that enables you to interface CardioTouch 3000 to Windows-based computers through LAN. The ECG data from CardioTouch 3000 is saved in either Bionet’s proprietary file format (.ecg), JPEG or PDF. The JPEG file format ensures compatibility with most EMR packages. BMS-Plus displays real-time ECG data on-screen, instantly performs a full set of measurements, and offers diagnostic aid. In addition, BMS-Plus can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper.

Upgradeable Software
The CardioTouch 3000 software is user upgradeable and is constantly being improved.

Includes:
CardioTouch 3000 Main Unit, 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Medi-Graph Paper, Hospital Grade Power Cord, Operation Manual, Diagnostics Guide Book, Quick Reference Guide and 3-Year Warranty Card.

Option:
ECG Cart, Hanger, WiFi USB Dongle

Warranty:

3-Year Warranty

Specification:

Feature	Specification
ECG Leads	Simultaneous 10 Leads Resting ECG (12 channel)
Dimension	290 (W) x 300 (D) x 97.5 (H) mm
	Approximately 3.5 kg (Main Body)
Recording Channel	3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 1CH Long Time (1min) and Beat Report
Sensitivity	2.5, 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV
Printing Speed	5, 12.5, 25, 50, 100mm/sec
Sampling Rate	Analysis Sampling Rate: 500 sample/sec Digital Sampling Rate: 8,000 sample/sec
Filters	AC (50/60Hz, -20dB or better), Muscle (25~35Hz, -3dB or better), Base Line Drift (off, 0.05, 0.1, 0.2Hz, -3dB or better), Low Pass Filter (off, 40Hz, 100Hz, 150Hz)
Display	272 x 480 Pixel Resolution, 4.3” Color TFT Display 12 Channels Preview, ID, HR, Gain, Speed, Power Status
Export file format	ECG, XML, PDF, JPEG, MFER
User Interface	Touch Screen, Rotary Push-knob
Recorder	Thermal Print Head, Roll Paper Report Paper – Width: A4/Letter – 215mm (8.5”) – Length: A4 – 297mm (11.7”) Letter – 279mm (11”) Resolution: 8dot/mm (0.125mm pitch)
Patient data	ID, Name, Age, Gender, Height, Weight
Basic Measurement	Heart Rate: 30~300bpm (±3bpm) PR, QRS, QT/QTc, P-R-T axis
ECG Data Storage	Internal Storage for 200 ECGs: Built- in Memory External memory available
Electrical	Internal Noise: 20uV(p-p)max
	Input Impedance: More than 50MΩ
	Input Voltage range: ±5mV
	CMRR: Greater than 105dB
	DC offset Voltage: ≥ ±400mV
	Patient Leakage Current: < 10uA
	Frequency Response: 0.05~150 with in –3dB
	Isolated, Defibrillation and ESU Protected
Signal Quality Control	Pacemaker Pulse Detection Lead Fault Detection, Signal Saturation Detection
Power	Input: 100-240Vac, 1.5-0.75A, 50-60Hz, Output: 15Vdc, 4.2A
Battery type	Replaceable and Rechargeable, Lithium ion, 11.1V, 2600mA
Battery Capacity	6 hours of normal use (without recording,200 ECGs) with 12 channel Battery charge time is 3 hours.
Communication	LAN, USB, WIFI (option)
Safety Conformity	Class I, Type CF Defibrillation-proof applied Part
Environment	Operating Temperature: 5~40°C Operating Humidity: 10~90%RH Atmospheric Pressure: 70~106KPa
Standard Accessory	Power Cord – 1 ea Patient Cable – 1 ea ECG clips – 1 set Disposable Electrodes – 1 pouch Chart paper – 1 ea Operation manual – 1 ea Rechargeable battery – 1 ea
Options	Cart, Hanger, USB WiFi dongle
