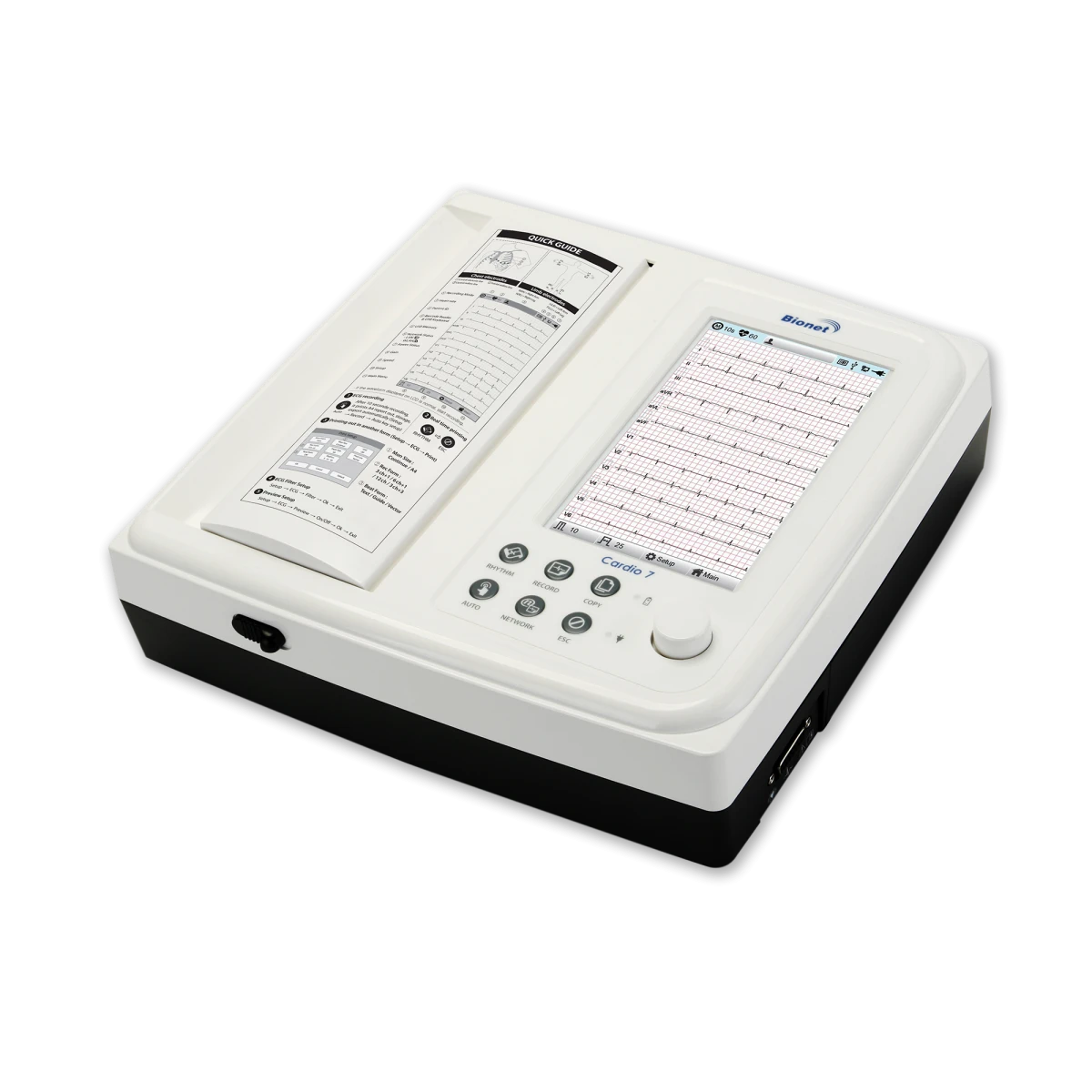

Cardio7 - Interpretive Touch Screen Electrocardiograph ECG/EKG Machine

Cardio7 - Interpretive Touch Screen Electrocardiograph ECG/EKG Machine - Image 2

Cardio7 - Interpretive Touch Screen Electrocardiograph ECG/EKG Machine - Image 3

Cardio7 – Interpretive Touch Screen Electrocardiograph ECG/EKG Machine

Original price was: $309.00.Current price is: $98.99.

SKU: YMLVB 9137530 Categories: ECG, Medical Tags: Brand_Bionet, ECG, Featured Product, Touch screen ECG

Quality Products, Quality Service
Online assistance, always just a message away.
Prompt service, every time.
Shop quality, shop with us.

The Cardio7 is a reliable, interpretive touch screen electrocardiograph (ECG/EKG). It features a large 7” TFT LCD touch screen with WiFi. Supports USB flash drive, a QWERTY keyboard, JPEG/PDF file format, one channel long-term recording, and storage of up to 200 ECGs. It stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. It prints in multiple formats, including 12, 6 and 3 channel reports. Can be connected to PACS server through DICOM 3.0 and send ECGs to the server.

Cardio7 stands out for its advanced technology, high functionality, ease of use, and an unbeatable price/performance ratio.

Maximized Ease of Use
Cardio7 combines menu-guided touch screen technology with a convenient rotary key and buttons to maximize ease of use. USB barcode reader and keyboard can be attached through USB ports.

Built-In Memory and Supports USB Flash Drive
Store up to 200 ECGs in internal flash memory. Saved ECGs can be converted to various standard file formats: JPG, PDF, XML, MFER, and DCM, and exported to external USB flash drive.

EMR Support
The Cardio7 sends ECGs to PC by using BMS-Plus windows based PC software through LAN or WiFi. It supports DICOM 3.0 protocol to retrieve work lists from PACS and save ECG images to PACS. USB flash drive can be used to move ECGs stored in Cardio7 to PC.

Clinically Important Simultaneous 12 Lead Acquisition
Cardio7 acquires 10 full seconds of ECG data simultaneously from 10 leads to produce an accurate 12 channel printout with analysis in less than 60 seconds.

Full Disclosure Function
Cardio7 stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms.

Enhanced Interpretation
The ECG printout offers detailed interpretation information in text/guide/vector report formats to aid in diagnosis. Provides 12 channel, 6 channel + 1 rhythm, 3 channel + 1 rhythm, and 3 channel + 3 rhythm reports. Supports pediatric interpretation.

Long-Term Recording & Automatic Arrhythmia Detection
Cardio7 provides one channel long-term recording like 1, 3, 5, 10 minute with arrhythmia detection and HRV (Heart Rate Variability) analysis.

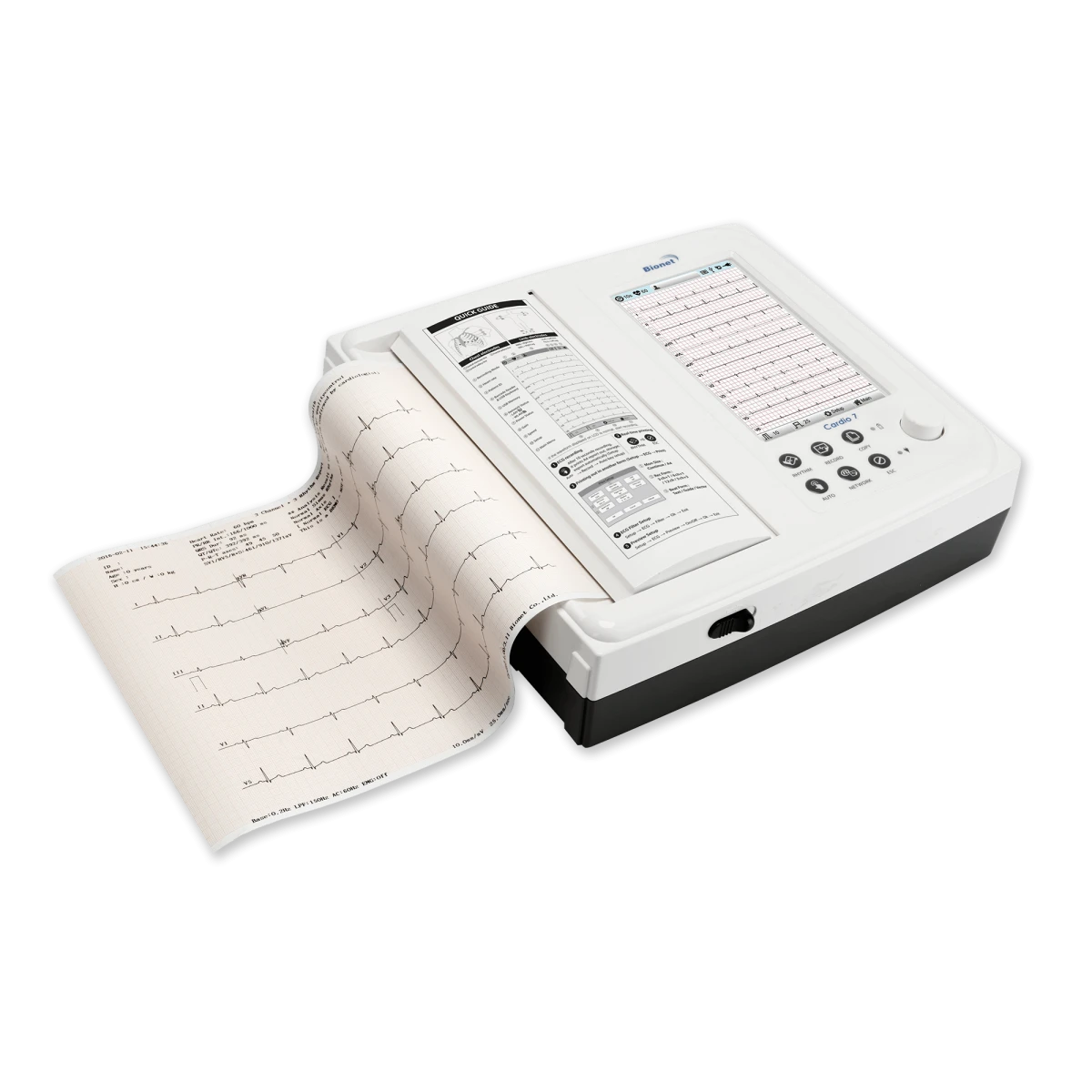

A4 Full Size Paper
Cardio7 produces full size A4 printouts in 1, 3, 6, and 12 channel formats. Full size printouts improve readability and make it easier for filing in the patient chart.

ECG Filing System BMS-Plus

BMS-Plus is a software program that enables you to interface Cardio7 to Windows-based computers through LAN. The ECG data from Cardio7 is saved in either Bionet’s proprietary file format (.ecg), JPEG, or PDF. The JPEG file format ensures compatibility with most EMR packages. BMS-Plus displays real-time ECG data on-screen, instantly performs a full set of measurements and offers diagnostic aid. In addition, BMS-Plus can eliminate the need for costly thermal paper by printing a variety of comprehensive reports on standard printer/copier paper.

Spirometer function available (Cardio7S)
SPM-300 spirometer sensor can be attached later to add the pulmonary function tests, including: FVC (Forced Vital Capacity), SVC (Slow Vital Capacity), and MVV (Maximum Voluntary Maximum).

Includes:
Cardio7 Main Unit, 10 Lead ECG Patient Cable, Alligator Clips, Electrodes, Medi-Graph Paper, Hospital Grade Power Cord, Operation Manual, Diagnostics Guide Book, Quick Reference Guide, and 3-Year Warranty Card. WiFi USB Dongle and USB Flash Drive with BMS-Plus Software Included.

Option:
ECG Cart, Hanger, DICOM 3.0, Spirometer Sensor

Warranty:

3-Year Warranty

Specification:

FEATURE	SPECIFICATION
ECG leads	12 channel simultaneous ECG and acquisition
Dimension	300 (w) x 299 (h) x 123 (d) mm Approximately 4 kg
Record	Auto, Rhythm, Disclosure, Arrhythmia Detect
Recording channel	3 channels + 1 rhythm, 3 channels + 3 rhythm, 6 channels + 1 rhythm, 12 channels, 1 channel long time (1 min, 3 min, 5 min, 10 min) and special reports (text, guide, vector)
Sensitivity	2.5, 5, 10, 20, auto (I~aVF: 10, V1~V6: 5) mm/mV
Printing speed	5, 12.5, 25, 50, 100 mm/s
Sampling rate	2,000 samples per second
Filters	AC (50/60Hz, – 20dB or better) Muscle (25~35Hz, -3dB or better) Base line drift (0.05, 0.1, 0.2 Hz, -3dB or better) Low pass filter: off, 40Hz, 100Hz, 150 Hz
Display	7″ color TFT wide display (800 x 480)
Monitor Display	HR, ID, date, AC or battery state, sensitivity, speed, number of saved data, printing form, rhythm lead
User Interface	Touch screen, hot key, barcode scanner, USB keyboard
Patient data	ID, name, age, sex, height, weight, smoke, race
Basic measurement	Heart rate, PR, QRS, QT/QTc, P-R-T axis
Recorder	Thermal print head, thermal roll paper Report papers: (width x length) – A4: 215 mm (8.5″) x 297 mm (11.7″) – Letter: 215 mm (8.5″) x 280 mm (11″) Resolution: – Vertical: 8 dot/mm – Horizontal: 16 dot/mm
Electrical	Internal noise : 20uV (p-p )max Input impedance : More than 50M? Input voltage range : ±5mV CMRR : +105dB DC offset voltage : >= ±400mV Patient leakage current: Frequency response 0.05~150Hz within -3 db Isolated, defibrillation and ESU protected
Signal quality control	Pacemaker pulse detection lead fault detection, signal saturation detection.
ECG data storage	Internal storage for 200 ECGs and external USB flash drive
Power	Input: 100-240 VAC, 2-1 A, 50/60 Hz Output: 60 VA max
External link	LAN, 2 USB Port
File format	PDF, JPG, XML, MFER, DCM
Battery	Type: Replaceable and rechargeable Lithium Ion Capacity: 6 hours of continuous operation without printing or Approx. 3 hours of 200 ECG printouts
Communication	RS232, LAN, WiFi, USB flash drive, USB barcode scanner
Safety conformity	Class 1, Type CF, CE, FDA, KFDA, CFDA, NCC
Environment	Operating humidity: 30~85% Operating temperature: 10° ~ 40° C
Standard accessory	Power Cord (1 ea.), Patient Cable (1 ea.), ECG clips (1 set), Disposable Electrodes (1 pouch), Chart paper (1 ea.), Operation manual (1 ea.), Diagnose guide (1 ea), Rechargeable battery (1 ea), USB WiFi dongle (1 ea)
Options	Cart, Hanger, DICOM 3.0
