BM3 Pro – Multi-Parameter Patient Monitor (Human)

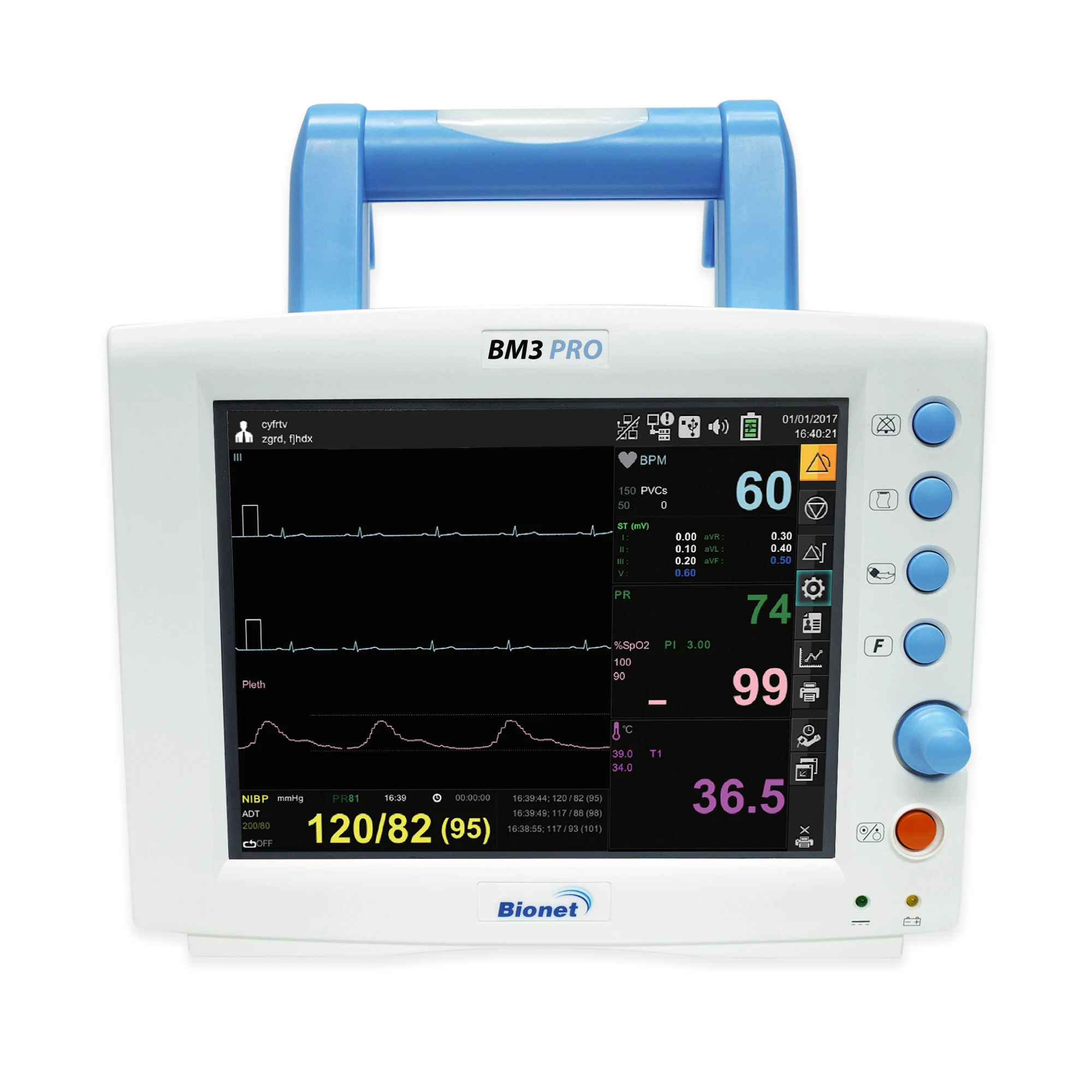

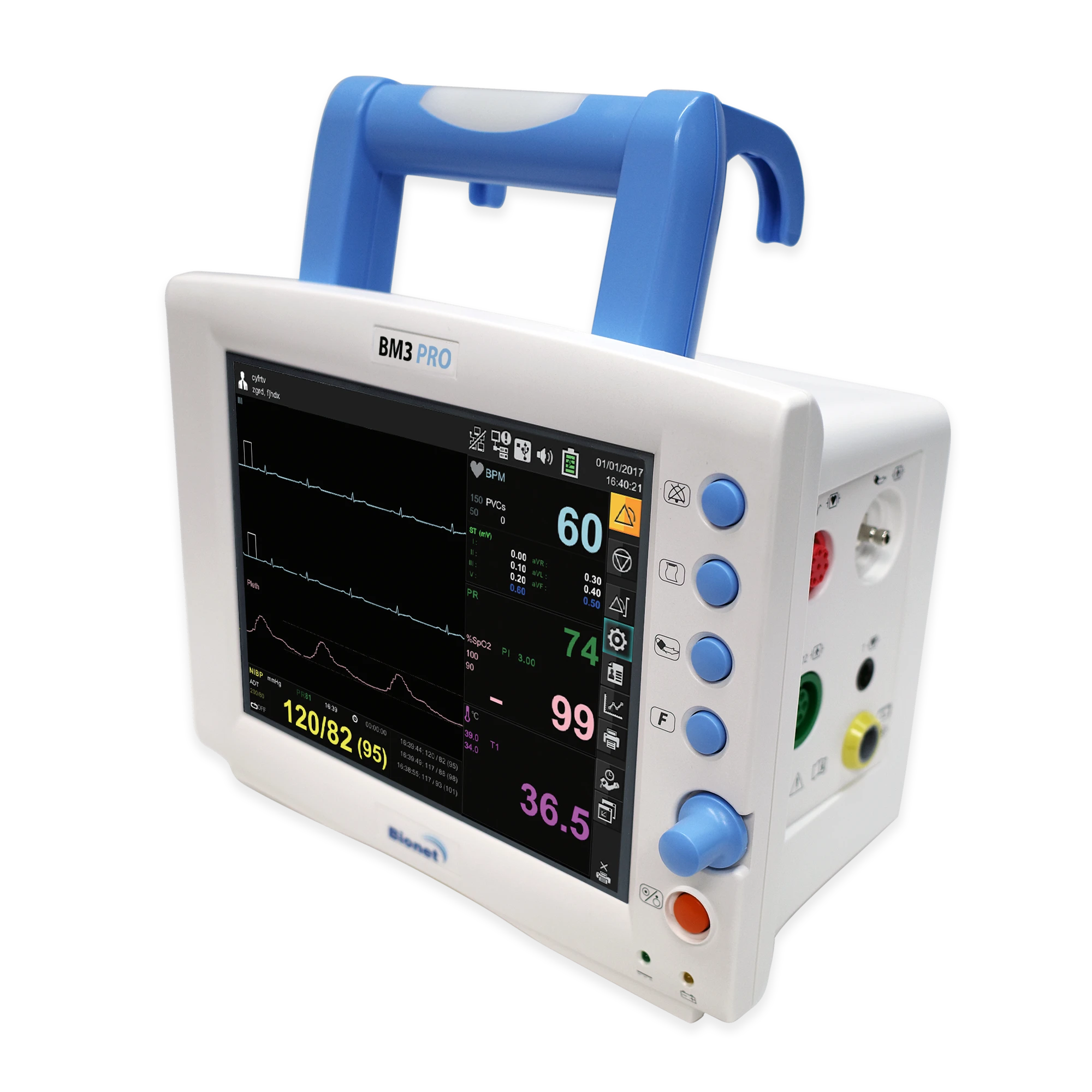

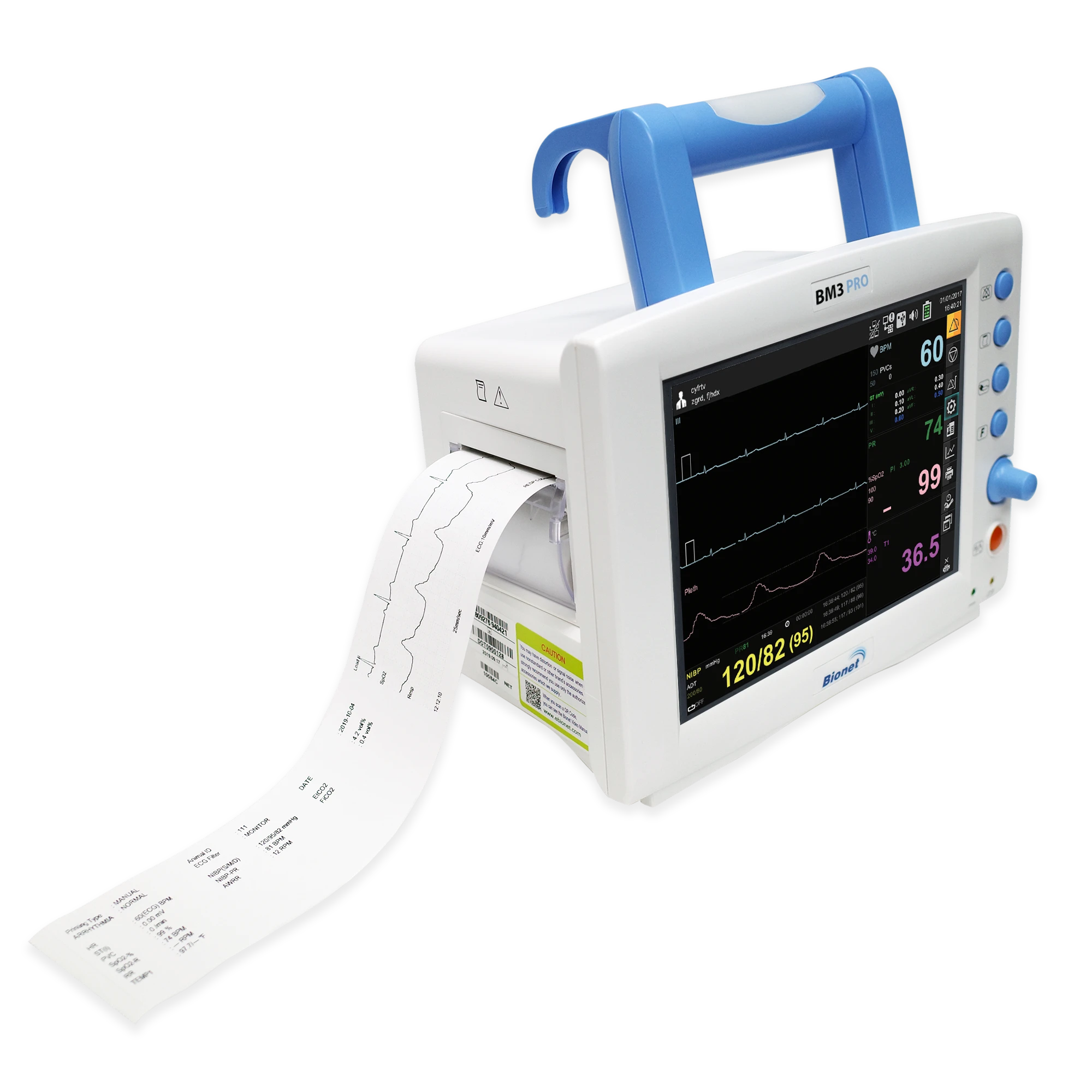

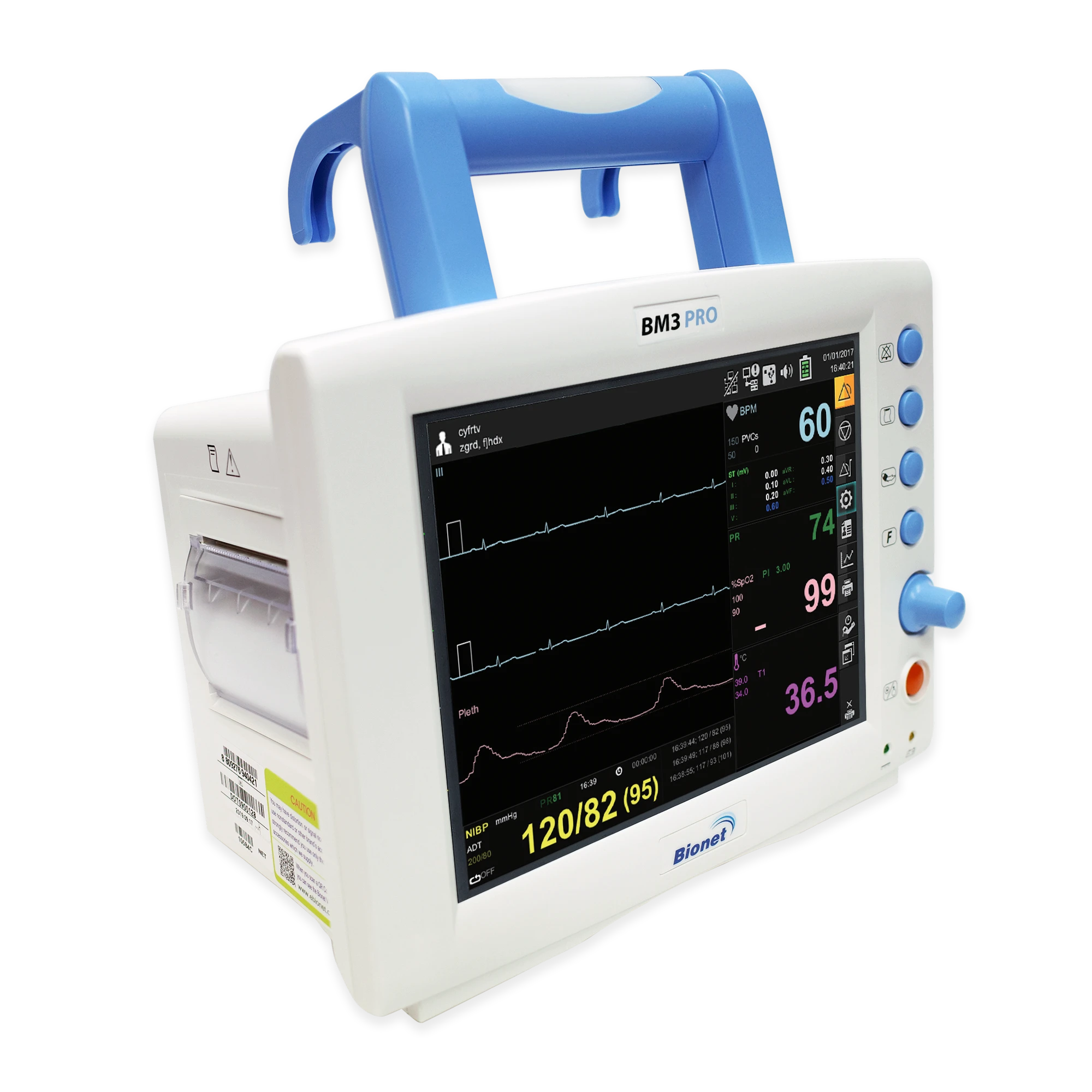

Versatile, portable, and lightweight, the BM3 Pro patient monitor is specially designed to be reliable and user-friendly. The compact design, coupled with a unique handle, makes it easy to move from room to room. Its 8″ high resolution LCD touch screen displays all the vital signs in different colors for easy recognition. A built-in printer offers hard-copy documentation of all measured values, as well as up to 4 waveforms of information. Alarms and settings are easily adjustable and are retained after turning off the power. Plug-and-play side or mainstream EtCO2 sensor can be added at any time.

Intended Use: To monitor vital signs in patients, including: ECG, SpO2, NIBP, respiration, temperature and EtCO2. (Option: Temperrature, EtCO2)

Superior Advantages
• ECG, SpO2, NIBP, respiration, temperature*, EtCO2*
• 8.0″ Color TFT Touch Screen with 4 Wave Forms
• Individual Sweep Speed Setting for Each Parameter
• SpO2  Measurement – Every Low Perfusion Detection / Pulse Beep
• Multiple Display Modes
• Screen Freeze On/Off
• 168 Full Hours of Trend Data Are Stored
• USB Memory Storage
• External HDMI Output for Large Screen

Enhanced & Extendible Multi-Parameter
• Sidestream/Mainstream EtCO2

High-Performance ECG Detection and Analysis
• Enhanced input impedance for dry skin or electrode patch
• Pacemaker detection function

Enhanced Data Management
• Graphical and tabular trends
• 20 cases – 10 sec. alarm waveform stored, reviewed and printed
• USB memory storage

Transportable
• Li-ion Rechargeable Battery Allows Cordless Use for 2 Hours
• Less than 7 lbs, including battery

Includes:
BM3 Pro Main Unit, 3 Lead ECG Cable (snap type) with Extension Cable, Electrodes, SpO2 Adult Finger Sensor and Extension Cable, NIBP Adult Cuff (arm circumference 25-35 cm) and Extension Tube, Chart Paper (x2), Power Adaptor & Hospital Grade Power Cord, Operation Manual, and 3-Year Warranty Card.

Warranty:

3-Year Warranty

*Temperature probe and EtCO2 accessories purchased separately.



Specification:

Item	Feature	Specification
General	Display, Resolution	8′ wide color touch TFT LCD, 800 x 600 pixels
	Dimension, Weight	238 (W) x 250 (H) x 163 (D) mm, approx. 3.1 kg
	Trace	4 waveforms: 2*ECG, SpO2, respiration Swap speed: 6.25, 12.5, 25, 50 mm/sec.
	Indicators	Categorized alarms (3 priority levels) Visual alarm QRS beep & SpO2 pulse beep Percent (%) SpO2 pitch tone Battery Status, external power LED Rotary Knob
	Interfaces	Power supply: AC 100 – 240 V (50/60 Hz) DC input connector: 18 VDC, 2.8 A LAN digital output for transferring data Nurse call system connection: – 0.3 A at 125 VAC – 1 A at 24 VDC External HDMI output for large screen USB barcode reader USB memory data storage/Software upgrade
	Battery	Rechargeable Li-ion battery Approx 2 hours of continuous operation
	Thermal Printer (Option)	Speed: 25, 50 mm/sec. Paper Width: 58 mm
	Data Storage	168 hours of trend data, 20 cases of 10 sec. alarm waveform
	Language	English, French, Spanish, Italian, German, Chinese, Russian, Czech, Polish, Turkish, Romanian, Portuguese, Bulgarian, Hungarian, Korean, Japanese, Greek
	Standard Accessories	3-lead ECG cable with extension – 1 ea Electrodes – 10 ea NIBP extension hose (3 m) – 1 ea NIBP adult cuff (23-33/27.5-36.5 cm) – 1 ea SpO2 extension cable (2 m) – 1 ea Reusable adult SpO2 probe – 1 ea DC adapter (18VDC, 2.8A) with power code – 1 ea Paper roll – 2 ea
	Optional Accessories	5-lead ECG cable Temperature probe (skin) NIBP cuff (reusable/disposable)
	Optional Module	Mainstream EtCO2 airway adapter kit (sensor) Sidestream EtCO2 airway adapter kit (sensor)
ECG	Lead Type	3-lead, 5-lead (Option)
	Lead Selection	3-lead: I, II, III 5-lead (Option): I, II, III, aVR, aVL, aVF, V
	ECG Waveforms	3-lead: 1 channel 5-lead (Option): 1 channel
	Heart Rate Range	Adult: 30 to 300 bpm Neonate/Pediatric: 30 to 350 bpm
	Heart Rate Accuracy	+/-1 bpm or +/- 1%, whichever is greater
	Sweep Speed	6.25, 12.5, 25, 50 mm/sec.
	Filter	– Diagnoses: 0.05 tp 150 Hz – Monitoring: 0.5 to 40 Hz – Moderate: 0.5 to 25 Hz – Maximum: 5 to 25 Hz
	Pacemaker Detection Mode	Indicator on waveform display (user selectable)
	Protection	Against electrosurgical interference and defibrillation
Respiration	Method	Thoracic impedance
	Channel Selection	RA-LA or RA-LL
	Measurement Range	5 to 120 breaths per minute
	Accuracy	+/- 1 breath per minute
SpO2	Saturation Range	0 to 100 %
	Saturation Accuracy	70 to 100 % +/- 2 digits, 0 to 69 % unspecified
	Pulse Rate Range	30 to 254 bpm
	Pulse Rate Accuracy	+/- 2 bpm
NIBP (Suntech)	Method	Oscillometery
	Operation Mode	Manual / Automatic / Continuous
	Pressure Range	0 to 300 mmHg (accuracy +/- 3 mmHg)
	Safety Pressure	Adult pressure: 20 to 260 mmHg Pulse rate: 30 to 220 BPM Pediatric pressure: 20 to 160 mmHg Pulse rate: 30 to 220 BPM Neonate pressure: 20 to 130 mmHg Pulse rate: 30 to 220 BPM
	Accuracy	Meets accuracy requirements of ANSI / AAMI SP10: 1992 AND 2002
Temperature (only probe option)	Measurement Range	0 to 50°C (32 to 12250°F)
	Accuracy	25°C to 50°C: +/- 0.1°C 0°C to 24°C: +/- 0.2°C
	Compatibility	YSI series 400 temperature probes
Sidestream EtCO2 – Respironics (option)	Measurement Range	0 to 150 mmHg, 0 to 19%
	Accuracy	0 to 40 mmHg +/- 2 mmHg, 41 to 70 mmHg +/- 5 % of reading, 71 to 100 mmHg +/- 8 % of reading, 101 to 150 mmHg +/- 10 % of reading
	Respiration Rate	2 to 150 breaths per minute
	Respiration Accuracy	+/- 1 breath per minute
Mainstream EtCO2 – Respironics (option)	Measurement Range	0 to 150 mmHg, 0 to 19%
	Accuracy	0 to 40 mmHg +/- 2 mmHg, 41 to 70 mmHg +/- 5 % of reading, 71 to 100 mmHg +/- 8 % of reading, 101 to 150 mmHg +/- 10 % of reading
	Respiration Rate	0 to 150 breaths per minute
	Respiration Accuracy	+/- 1 breath per minute

** Specifications can be changed without prior notification.
